SRP-275III

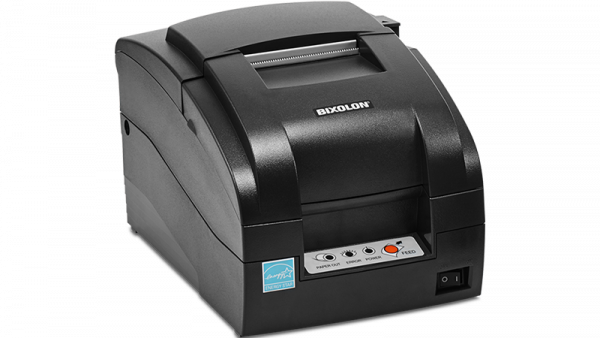

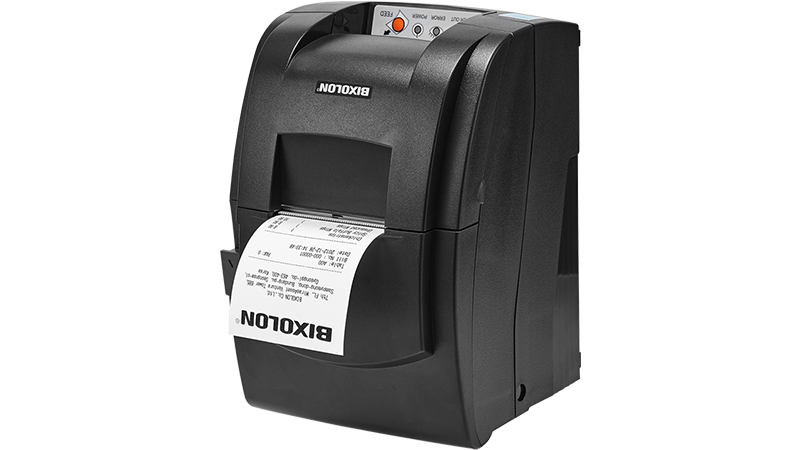

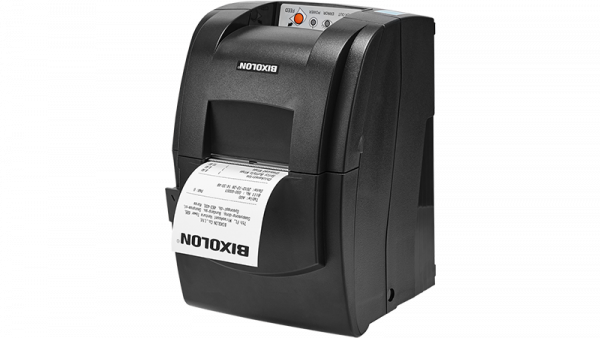

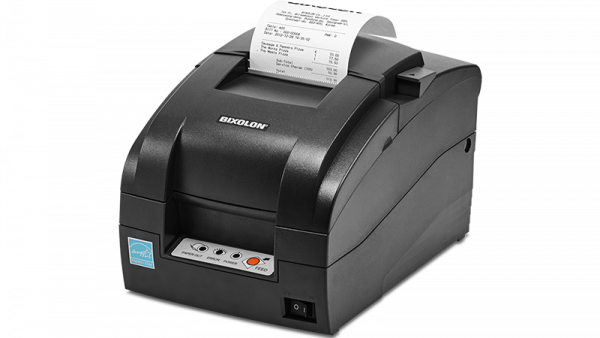

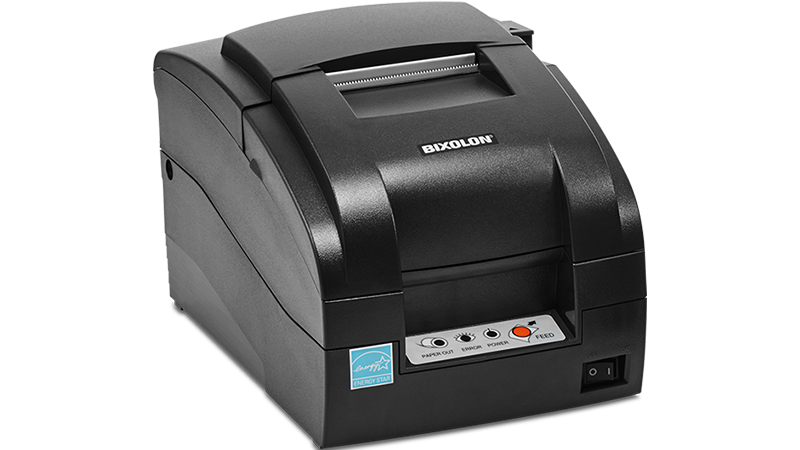

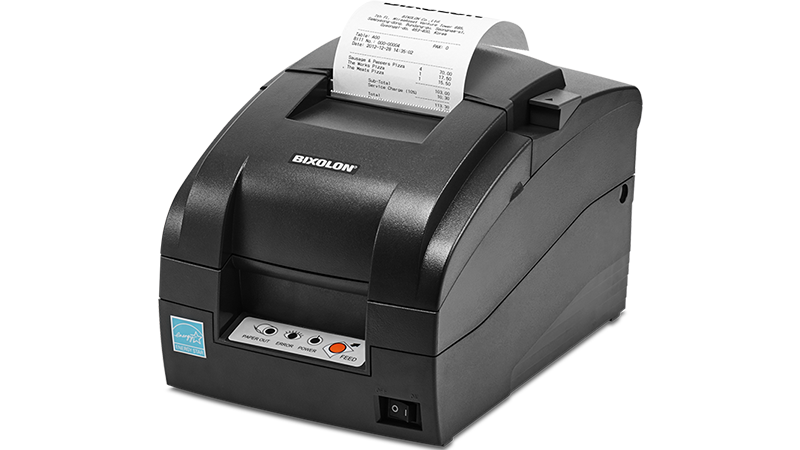

3-inch Impact Dot POS Printer

BIXOLON’s 3-inch (80mm) SRP-275III Dot Matrix Receipt printer offers a quality, cost-effective two-colour printing solution printing at speeds up to 5.1lps (at 40 columns). This easy to use printing solution is suited to a range of applications from Kitchen Printing, End-of-Day Reporting, Customer Receipting and more.



SKU: 22ac3c5a5bf0-1-1 Category:
Description

Print Characteristics

Print Method

9 Pin Serial Dot Matrix

Print Speed

Up to 5.1 lps (at 40 columns)

Print Resolution

80 dpi (Horizontal), 144 dpi (Vertical)

Print Width

Up to 63.5 mm

Sensor

Paper End, Paper Near End, Wall Mounting Paper Near End, Rear Cover Open, Black Mark

Media

Media Type

Receipt

Media Width

76.5 mm

Media Roll Diameter

Up to 83 mm

Media Thickness

0.06 to 0.085 mm

Supply Method

Easy Paper Loading

Physical Characteristics

Dimensions (W x L x H)

160 x 239 x 157 mm (6.29 x 9.40 x 6.18 inch)

Weight

A: 2.4 kg (5.29 lbs.), C: 2.5 kg (5.51 lbs.)

Electrical

EnergyStar® Certified, External Power Supply Housed Internally (Adapter 24V/2.5A), 50/60Hz

Drawer Port

2 ports (Via Y-Type Adapter)

Performance

NV Image Memory

256 Kbytes (Mono)

Receive Buffer

64 Kbytes

User Define Buffer

64 Kbytes

Interfaces

① USB 2.0 FS + Serial + Ethernet (DHCP enabled)
② USB 2.0 FS + Parallel
③ USB 2.0 FS + Serial

Environment

Temperature

Operating: 0 to 40℃ (32 to 104℉)
Storage: -20 to 60℃ (-4 to 140℉)

Humidity

Operating: 10 to 80% RH
Storage: 10 to 90% RH

Software

Emulation

BXL/POS

Drivers & Utilities

Windows®, OPOS/JPOS, Linux/Mac® CUPS, Virtual COM USB/Ethernet, Utility Program

Developer Tools

Android / iOS® / Windows SDK, Linux SDK, Xamarin SDK, Web Print SDK, Cordova Plugin, MAUI SDK, Flutter Plugin, React Native SDK

MDM (Optional)

BIXOLON Profile Manager – XPM, XCM (Windows, Android)

Fonts/Graphics/Symbologies

Character Size

Font A: 9 x 9, Font B: 7 x 9, KOR: 17 x 9, CHN: 16 x 16

Characters per Line

Font A: 35, Font B: 40, KOR: 20, CHN: 22

Accessories/Supplies

Included in the Box

Paper, AC Adapter, Power cord, Ribbon cassette

Optional Accessories

Wall Mount, Splash Proof Cover, Ribbon Cartridge, B-Melodist, External Buzzer, USB A-B Cable 1.8m
