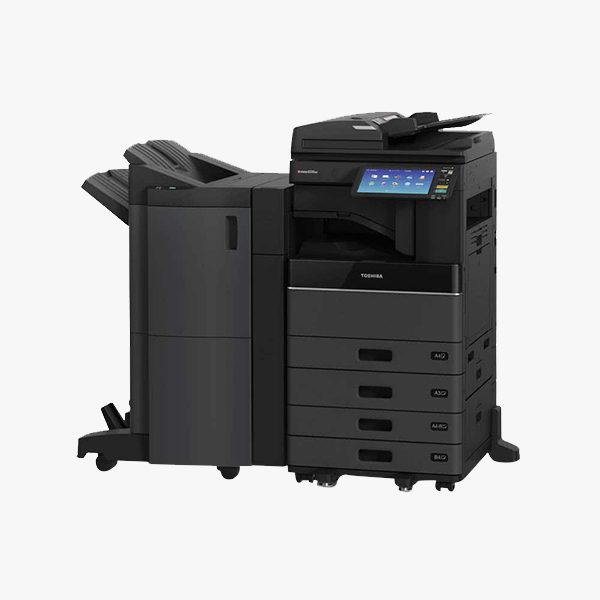

E-Studio 2010AC/2510AC
The e-STUDIO2010AC/2510AC comprises an A3/LD-size color MFP series that offers print speeds of 20/25 ppm. For group projects, for business and for those who need color print function, we are here to assist you. The series incorporates with industry-leading technology and innovations that are designed to help small groups of people stay connect and simple.
Description
GENERAL
| Copying Process | Indirect electrostatic photographic method |
| Print & Copy Speed | 20/25cpm |
| Warm-up Time Approx. | 21 seconds |
| Paper size / weights | Drawers: A3 -A5R/ 60 – 163 gsm |
| Stack Feed Bypass: | A3 – 100 x 148 mm / 60 – 209 gsm |
| ADU: | A5R / 60 – 163 gsm |
| PFU (Opt. MY-1047): | A3 – A5R / 60 – 163 gsm |
| PFP (Opt. KD-1058): | A3 – A5R / 60 – 163 gsm |
| LCF (Opt. KD-1059LT): | A4 – 64 – 105 gsm |
| Optional Envelope Cassette: | A4R,B5R,A5R/ 60 – 256 gsm |
| 100 X 162 mm – 240 X 380 mm / 60 – 85 gsm (envelops) | |
| Paper Capacity (STD) | Drawer x 1 : 250 sheets x 1 |
| Stack Feed Bypass: 100 sheets | |
| Paper Capacity (Option) | Optional PFU: 550 sheets |
| Optional PFP: 550 sheets | |
| Optional drawer for PFP: 550 sheets | |
| Optional LCF (Pedestal type): 2000 sheets | |
| Optional envelope cassette: 550 sheets (only A4-R), 50mm (Envelope) | |
| Default setting of Std. Drawers | A4 |
| Max. Paper Capacity | 2,900 sheets (w/Optional LCF) |
| Processor | Intel E3825 1.33GHz(Dual Core) |
| Memory | 2 GB (Main memory + Page memory) |
| HDD | 320 GB Toshiba Secure HDD |
| Dimensions | W575 x D585 x H662 (mm) |
| *Height at original glass | (W/ ADU and SFB ; Std.) |
| Weight | Approx. less than 57 kg *Including drum |
| Power Consumption | Max. 2.0kW (220 – 240V) |
| Super sleep: 0.7W |
| Resolution | |
| Printing (B&W) | 600 dpi x 600 dpi, 5bit |
| 600 dpi x 1200 dpi, 1bit (PS) | |
| Printing (Full Colour) | 600 dpi x 600 dpi, 5bit |
| 600 dpi x 1,200 dpi, 1bit (PS driver) | |
| Page Description Language | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Supported OS (Windows) | Windows Vista SP2 (32 bit)(64 bit) |
| Windows 7 SP1 (32bit)(64bit) | |
| Windows 8/8.1 (32 bit)(64 bit) | |
| Windows 10 (32 bit)(64 bit) | |
| Windows Server 2008 SP2 (32 bit)(64 bit) | |
| Windows Server 2008 R2 SP1 (64 bit) | |
| Windows Server 2012/R2 (64 bit) | |
| Windows Server 2016 (64 bit) | |
| Supported OS (Macintosh) | Max OS X 10.4.11, 10.5.7, 10.7.4, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13 |
| Supported OS (Unix Filter) | Solaris ( SUN ) V10, 11, HP-UX Ver 11.iv3, AIX ( IBM ) 7.x |
| Supported OS (Linux) | Yes (Redhat Enterprise 5.x,6.x,7.x) |
| Fedora Ver 21,22 | |
| SuSE Linux Enterprise Server Ver.11,12 | |
| Open SuSE Ver.13.1,13.2 | |
| Ubuntu 14.04LTS,15.04 | |
| Debian 7.8, 8 | |
| Interface | 10/100/1000baseT (Std.), USB 2.0 High Speed, Host x 4（Front : Outside x1, Internal x 3(Opt)) |
SCAN
| Scanning Resolution (A4) | B/W 1 bit mono |
| Grayscale (8bit mono) | |
| Colour ( or ACS) Colour depth: RGB 8bit Colour (24bit) | |
| Scanning Speed (RADF) (A4) | 600 dpi x 600 dpi : 50 page/min |
| 400 dpi x 400 dpi : 62 page/min | |
| 300 dpi x 300 dpi : 73 page/min | |
| 200 dpi x 200 dpi : 73 page/min | |
| 150 dpi x 150 dpi : 73 page/min | |
| 100 dpi x 100 dpi : 73 page/min | |
| Image mode | B&W : (Text, Text/Photo, Photo) |
| Grayscale : (No mode selection) | |
| Colour / ACS : (Text, Photo, Printed) | |
| File Formats | B&W : TIFF-Multi/Single page, PDF-Multi/Single-Page, XPS-Multi/Single Page, DOCX(Opt.), XLSX(Opt.), PPTX(Opt.), Searchable PDF(Opt.) |
| Colour/Grayscale : TIFF-Multi/Single page, PDF-Multi/Single Page, XPS-Multi/Single Page, JPEG, Slim PDF, DOCX(Opt.), XLSX(Opt.), PPTX(Opt.), Searchable PDF(Opt.) | |
| ACS : TIFF-Single page, PDF-Multi/Single page, XPS-Multi/Single Page, DOCX(Opt.), XLSX(Opt.), PPTX(Opt.), Searchable PDF(Opt.) | |
| Scan Agent | Scan to File, Scan to E-mail, Scan to e-Filing, Scan to WS Scan, Scan to USB |
COPY
| Max. Original Size | A3 |
| Resolution | |
| Printing (B&W) | 600 dpi x 600 dpi, 5bit |
| 2400 dpi x 600 dpi (with smoothing) | |
| Printing (Full Colour) | 600 dpi x 600 dpi, 5bit |
| PMultiple Copy Qty | 1 to 999 |
| First Copy Time (B&W) | Less than 7.1 seconds |
| First Copy Time (Full Colour) | Less than 9.5 seconds |
| Zoom Range | (Original on glass) 25% to 400% (1% Increment)(Original on glass) 25% to 400% (1% Increment) |
| (Original on RADF) 25% to 200% (1% Increment) | |
| Copy Mode | Black Mode – Text/Photo, Text, Photo, Image smoothing |
| Full Colour Mode – Text/Photo, Text, Photo, Printed Image, Map | |
| Twin Colour Mode – Text/Photo, Text, Printed Image | |
| Mono Colour Mode – (applicable to 10 colours) -Text/Photo, Text, Printed Image | |
| Auto Colour Selection (ACS) Mode – Text/Photo, Text, Printed Image | |
| Gradation | 256steps |
FAX
| Compatibility | Super G3, G3 |
| Data Compression Method | JBIG, MMR, MR, MH |
| Modem Speed | 33.6kbps –2.4Kbps (automatic fallback) |
| Transmission Speedy | Approx. 3 seconds |
| Broadcast Transmission | Max. 200 Groups 400 Destinations |
